WS Grain Cleaners
Separates By Density Using Unique Air Flows
The WS Sosnowski [sos NOW ski] grain cleaning machines use unique air flows created by centrifugal force to separate good grain from almost any crop material. Seed cleaning using air flow is gentle. The air flow adjustment determines the cleaning action and its proper control is key to obtaining good results. A central diffusing element and a unique pattern of seed spreaders is also key. With the excellent design of the WS machine, grain cleaning quality is improved to almost twice that of most other similar machines on the market.

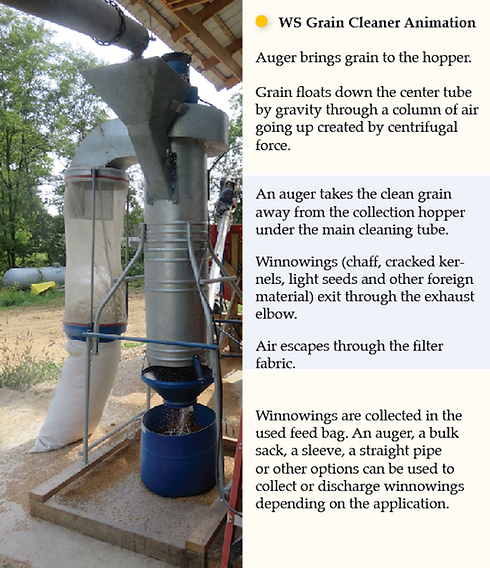

Regulating the air flow controls the separating action. Air is drawn up through the center tube in a unique pattern and exits out the exhaust. Anything less dense (weight and surface area) than the good grain will exit the machine through the exhaust. Even material that is heavier than the good seed may be taken out if its surface area is large enough. For example, wheat heads can be taken out even though they are heavier than plump kernels because its surface area is much larger.
Cleans Various Grains
The WS machines will clean many types of common grains such as barley, beans, corn, durum, hemp, lentils, maize, oats, peas, poppy, rape, rye, soybeans, spelt, sunflower, wheat and many more. After cleaning, the grain will be ready for storage, for planting or for grain burning furnaces. These cleaners have also been used for separating leaves from frozen fruit; sawdust from wood chips and small bits of wood and plastic from sand or bark.
Solution For Disease In Grain
Quality standards vary for cleaning grain depending on its end use. Harmful fungus and toxins such as vomitoxin, aflatoxin, fusarium, and ergot is harbored mostly in the chaff, the light seeds, and the cracked kernels. These diseases can easily double in a month when stored in slightly damp conditions. Removing this part from the good grain will lower the infection rate. The air flow through the grain will help dry down a high moisture crop. Cleaning tests with popcorn and spelt were conducted and the results tested by a certified lab. The popcorn was infested with a vomitoxin level of 11.2 which is unusually high. The spelt tested at 1.5 vomitoxin. After one pass through a WS grain cleaner, the popcorn tested at 1.8 and the spelt tested at 0.7.
Small Investment, Short Payback
It is easy to increase the value of your crop such as one farmer did in Saskatchewan. In 2016, he had 6,000 bushels of wheat that was contaminated with a high level of Fusarium fungus. It was rated as a grade 3 grain which was unfit for food or feed. The most that he was offered was $2.50/bu. Since the fungus consumes the inner part of the kernel, the thins, the lights, the cracks, and the fines are the most susceptible to this infection. After cleaning the grain with a WS machine, this part of the grain was removed which contained most of the fungus. The grain was then upgraded to a grade 1 and the offer on the wheat was $6.60/bu. This price difference was $4.10 per bushel which amounted to an increased value of over $24,000 for the crop. His Breakeven Point on the cost of the machine was reached in just a few hours of use. His Return On Investment (ROI) was very short. His purchase added more profit to his bottom line for the year.
• Exhaust Straight Pipe • Extra Exhaust Filters
Both available for purchase.
Send us an email with your request.
WS 100 Grain Cleaner
46" X 30" X 48"
WS 350 Grain Cleaner
48" X 35" X 60"
WS 750 Grain Cleaner
48" X 40" X 60"
Grading Seed Adds Value
Field trials have confirmed that using only the healthy, plump seeds for planting will increase yields up to 30% or more. An added benefit is that the crop will mature more uniformly and up to a week earlier. Grading out the heaviest, healthiest seed can be accomplished by performing a hard separation. Increasing the air flow will cause the lighter seeds, which are often the malnourished or diseased seeds to be separated from the healthiest, plumpest seeds having the highest test weight. Premium prices can be obtained for high value grain. The other separations can be used for feed or sold as a lower grade grain.
Consistent, Efficient, User Friendly
Because these machines have no screens to clean, it’s hard to beat their consistency and efficiency. The settings for different crops can be changed in a few seconds. Grain cleaning machines using screens are often slow and complex to operate which was best accomplished by a professional custom grain cleaning operator. Choosing the correct screens using those machines is a continuous process because the kernel size of grain may vary from year to year or even from different areas of the same field in the same year. This variation is caused by differences in weather, soil fertility, and plant health. Screens must be cleaned regularly to maintain consistency and becomes an ongoing, arduous task. Cleaning your own grain for seed like a pro is now possible for the average Joe. Best of all, these WS machines are very user friendly and crazy simple to operate!
WS 1500 Grain Cleaner
48" X 40" X 72"
$11,000 w/o Motor
WS 2500 Grain Cleaner
54" X 39" X 84"
$11,000 w/o Motor
Compact, Durable & Maintenance Free Design
The WS machines can be set up almost anywhere. This will reduce seed, herbicide, and transportation costs saving you time, money, and frustration. Their footprint is small. They can be integrated permanently into grain handling systems. Mounting them on small trailers or on a frame with castors will keep the unit mobile.
The fan is mounted directly on the motor and is the only moving part on the machine. There are no lubrication points and no spare parts are needed.
One company used a WS cleaning machine in 2013 to separate plastics. It was used 24/7 for two years non-stop including holidays and weekends. The third year it ran 12 hours a day, five days a week. It has operated with no down time during that time period.
Some operators who already own a good screen machine will purchase a WS grain cleaning machine and set it up to pre-clean grain before it runs through a screen machine for the sole purpose of speeding up the cleaning process. Much time is saved when screens don’t need to be cleaned as often.
If settings on the harvester leave a lot of large trash in the crop material like thistle seed heads, long straw stems, large insects, etc the crop needs to be run through the grain cleaner at a slower rate. The momentum of a strong grain flow will tend to drag foreign material along down with it. Slowing down the grain flow will give the machine the best chance of separating out these bulkier items. The speed of cleaning will also depend on other factors such as the amount of foreign material in the grain, moisture content, & quality requirements.
Choosing A Size To Match Your Need
The WS Grain Cleaner models are sized for the hobby farmer to large commercial operations and everyone in between. They come in capacities of 100 to 5500 bushels per hour. The two smallest units are 110V. All other units are 220V single phase.
Sizing a machine for your budget is easy with 7 model choices: 100, 350, 750, 1500, 2500, 4000, & 5500. Results are the same with each model. Usually each of the models are in stock ready to ship unless sales are better than expected.
Do you need help deciding which WS model you need?
Consider these three criteria:
1. Quantity of grain to clean
2. Amount of time to clean it
3. Quality requirements
Running these machine at full capacity will remove most of the dockage. Operate at 50% of capacity or less if cleaning for food or seed.
WS Grain Cleaner Gallery
